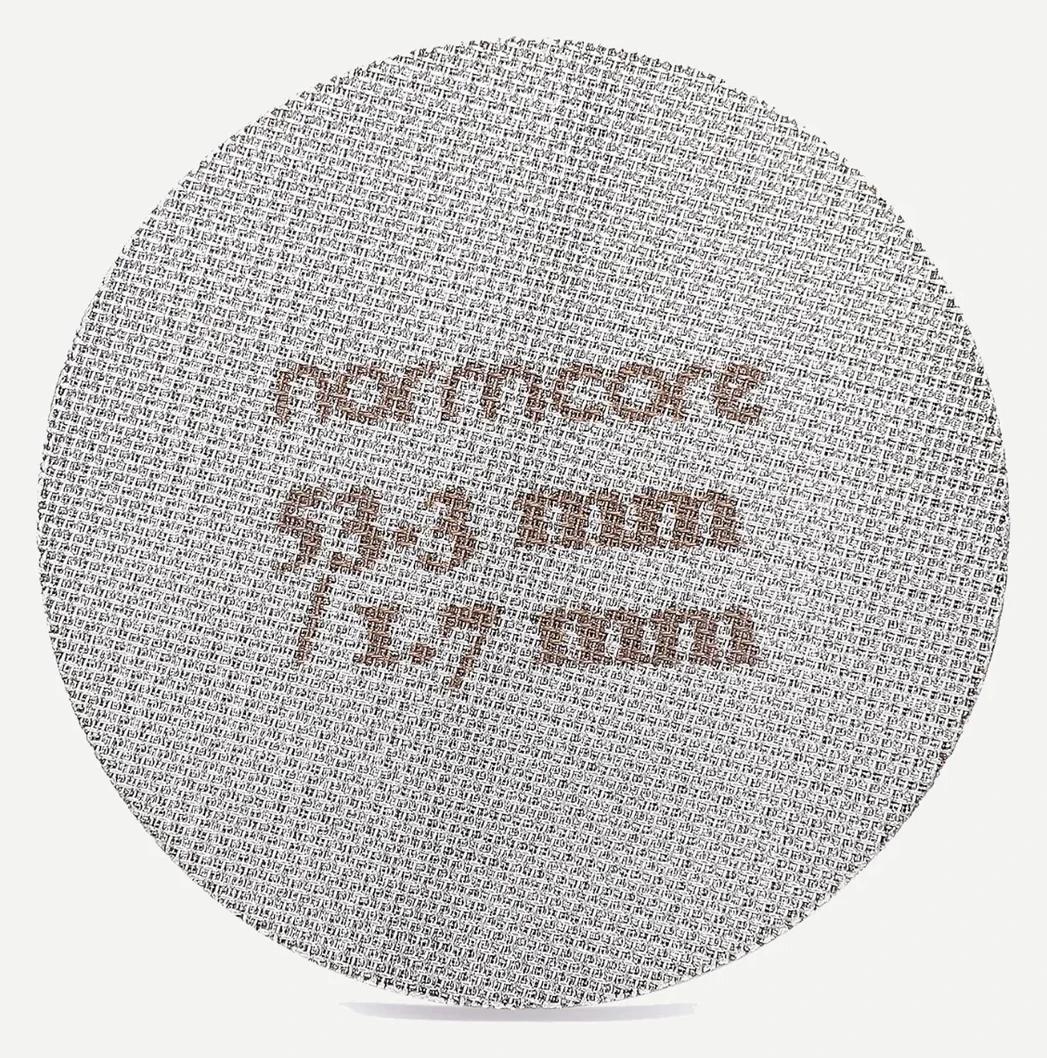

What is the Normcore Puck Screen?
A metal disc that goes on top of the coffee, between the grounds and the shower screen.
Normcore publishes 316 food-grade stainless steel, a thickness of 1.7mm, five layers of mesh at 150 microns, and a 53.3mm diameter sized to sit inside a 54mm portafilter basket. It is reusable and replaces the paper filter discs some people use in the same position.
What a screen actually does to the shot
It spreads the first contact of water, which is when channels form.
Water arrives from the group head through a shower screen with a handful of holes, and it arrives fast. In the first second or two it hits a dry bed at pressure, and any weakness in the puck becomes a channel that persists for the rest of the shot.
A puck screen puts a diffuser between the two. Water spreads laterally across the mesh before it enters the coffee, so the bed wets more evenly and the first moment of the shot is gentler. It also holds the surface of the puck down physically, which stops the crater that forms when a jet digs into loose grounds.
The secondary benefit is the one people notice first: the shower screen stays clean, because the puck screen takes the coffee that would otherwise be pushed up into it.
Five layers, and what 150 microns means
Mesh fineness sets how much the screen diffuses and how easily it clogs.
150 microns is fine enough to spread water and coarse enough not to block with fines. Layering five of those meshes rather than using one thicker sheet gives a longer, more tortuous path, which spreads the flow further sideways before it drops.
Normcore publishes this as better than single-layer screens and it is a fair claim structurally, though no extraction data is published to quantify it. 316 stainless rather than 304 is also a step up: it resists corrosion better, which matters for something soaked in hot acidic coffee twice a day.
Puck screen vs paper filter discs
Same position, same idea, and one of them is a consumable.
Paper discs do a similar job and cost a little each time. They also absorb some oils, which some people prefer and others feel thins the shot.
The screen is bought once and washed. Over a year of daily espresso it is far cheaper, and Normcore's pitch is exactly that. If you want the cleaner cup paper gives, the two are not interchangeable, and it is worth trying both before deciding.
Is it worth it?
Worth it as the last of the three cheap espresso fixes, after WDT and a good tamp.
Priced like a consumable, bought once. If your shots already run evenly it will change less than the marketing suggests; if your shower screen is filthy after every shot, it will fix that immediately.
Normcore publishes no weight and no warranty, and the size is the thing to get right rather than the specification.
Who should buy it (and who should not)
Buy it if you have a 54mm machine and clean the group head more than you would like.
It suits Breville and other 54mm owners, and anybody already using WDT and a level tamp who wants the remaining improvement.
Do not buy this one for a 58mm machine; the diameter is specific and a screen that does not sit flat is worse than none. And it is not a fix for a bad grind: a screen spreads water, it does not make an uneven puck even.
Frequently Asked Questions
What does a puck screen do?
It sits on top of the coffee and spreads the incoming water sideways before it enters the bed, which reduces channelling in the first seconds and keeps the shower screen clean.
What size do I need?
This one is 53.3mm, sized to drop inside a 54mm portafilter basket. Machines with 58mm baskets need a different screen.
Is a puck screen better than a paper filter?
It is reusable and cheaper over time. Paper absorbs some oils, which changes the cup, so they are not quite the same thing.
Does it need cleaning?
Yes, it should be rinsed with the basket. 316 stainless resists the corrosion that daily hot acidic coffee would cause.
